What if you could save tens of thousands of dollars while creating a production system tailored precisely to your needs? Imagine bypassing the hefty $14,000–$20,000 price tag of commercial assembly lines and instead building your own custom solution, one that’s not only cost-effective but also uniquely suited to your goals. Whether you’re automating the folding of boxes for efficient packaging or crafting intricate paper doves as personalized tokens of gratitude, the possibilities of DIY assembly lines are as practical as they are inspiring. With a bit of ingenuity and persistence, you can transform repetitive tasks into streamlined operations, all while maintaining a personal touch that commercial systems often lack. The question isn’t whether you can do it, it’s how far your creativity and resourcefulness can take you.
In this guide, HTX Studio take you through the fascinating world of DIY automation and uncover how it can transform your production process. From the precision of robotic arms to the ingenuity of spring-loaded guides and air cylinders, you’ll discover the building blocks of two real-world projects: a box-folding and packing machine, and a paper dove folding system. Along the way, you’ll gain insights into overcoming technical challenges, fine-tuning designs, and balancing efficiency with personalization. These examples don’t just showcase what’s possible, they highlight the potential for innovation and artistry in even the most technical endeavors.
DIY Assembly Line
TL;DR Key Takeaways :
- Custom DIY assembly lines offer a cost-effective and innovative way to enhance production processes, combining automation with personalization.
- The box folding and packing machine automates repetitive tasks, achieving high efficiency with components like robotic arms, spring-loaded guides, and air cylinders.
- The paper dove folding machine blends artistry with automation, producing intricate designs and personalized messages while overcoming challenges in precision and customization.
- These projects highlight the importance of problem-solving, material selection, and fine-tuning to achieve reliable, large-scale production with a personal touch.
- DIY automation demonstrates the potential to balance efficiency and individuality, fostering meaningful connections with audiences while achieving practical and creative goals.

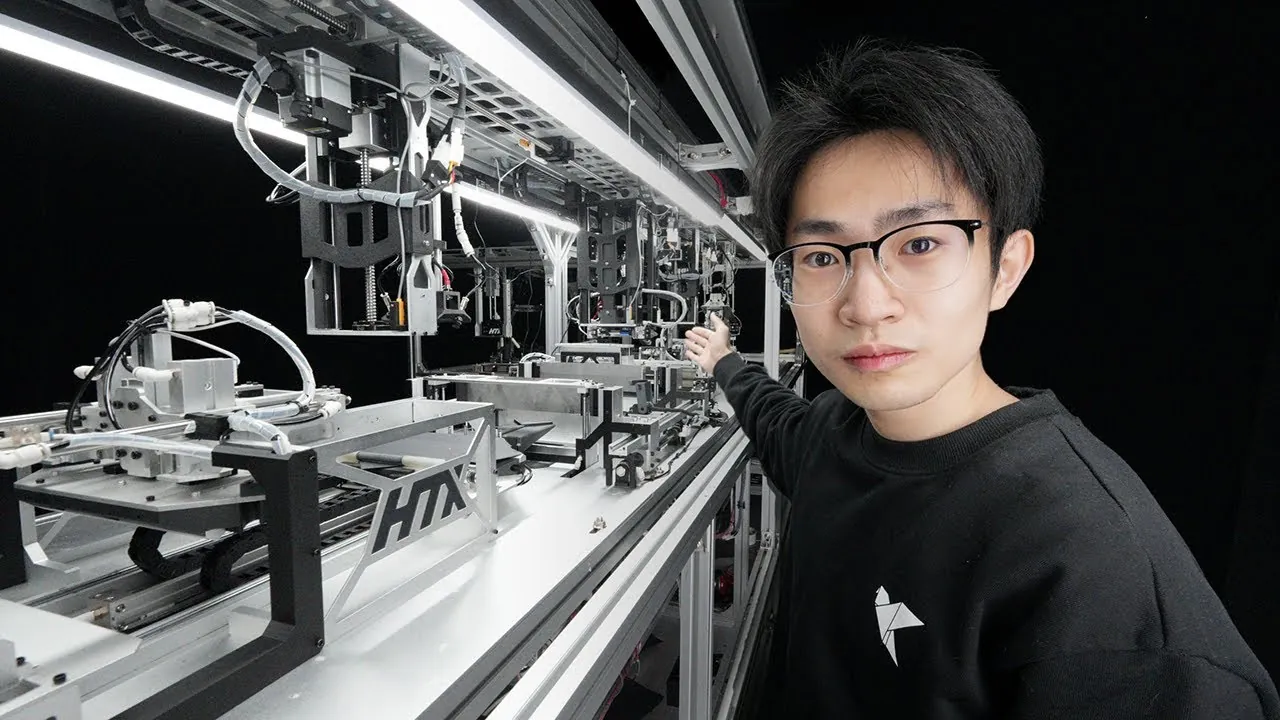

Box Folding and Packing Machine
The box folding and packing machine is a prime example of how automation can simplify repetitive tasks. This system automates the assembly of cardboard boxes, including inserting items and sealing lids, achieving an impressive packing speed of one box every 15 seconds. Its design incorporates several essential components:
- Robotic arms: Deliver precise movements to handle materials without damage.
- Spring-loaded guides: Ensure stability and alignment during the folding process.
- Air cylinders: Apply consistent pressure for accurate folding and sealing.
These components work in harmony to create a system that is both efficient and reliable. The robotic arms, for instance, were carefully calibrated to avoid damaging the cardboard, while the spring-loaded guides ensured proper alignment throughout the process. The air cylinders provided the necessary tension for consistent results, reducing errors and improving overall productivity.
Developing this machine required meticulous planning and experimentation. Material selection played a critical role, as the components needed to withstand repeated use without compromising performance. The result was a system capable of handling large-scale production with minimal supervision, showcasing the potential of precision engineering in DIY automation.
Paper Dove Folding Machine
The paper dove folding machine represents a unique blend of artistry and automation. This system transforms flat sheets of paper into intricately folded doves, combining technical precision with creative expression. Key features of this machine include:
- Robotic arms: Execute precise folding operations to create intricate designs.
- Rollers and molds: Shape the paper into consistent forms with high accuracy.
- Printing mechanisms: Add personalized messages to enhance the doves’ significance.
One of the primary challenges in developing this machine was achieving the level of accuracy required for intricate folding. Even minor deviations could compromise the final product. Through extensive trial and error, the creators refined the interaction between rollers and molds, making sure consistent results. The addition of printing mechanisms allowed for customization, making the doves meaningful and unique gifts.
This project highlights the potential of combining creativity with automation. By addressing technical challenges and fine-tuning the system, the creators were able to produce high-quality, personalized items at scale. The paper dove folding machine is a testament to how thoughtful engineering can bring artistic visions to life.
Building a Custom DIY Assembly Line
Here are more detailed guides and articles that you may find helpful on DIY assembly line.
Motivations and Challenges
The driving motivation behind these projects was the need to manage large-scale production efficiently while preserving a personal touch. Whether it was folding boxes for giveaways or crafting paper doves as tokens of gratitude, the creators sought to balance cost-effectiveness with meaningful production.
Overcoming technical challenges required persistence and ingenuity. For example, calibrating robotic arms to perform precise movements and adjusting air cylinders for optimal tension were critical steps in the development process. These efforts not only enhanced the machines’ performance but also ensured their reliability for large-scale operations.
The creators’ commitment to problem-solving and innovation was evident in their approach to these challenges. By experimenting with different materials, designs, and configurations, they were able to develop systems that met their specific needs while maintaining high standards of quality and efficiency.
Outcome and Broader Impact
The success of these DIY assembly lines is reflected in their tangible results and broader implications. The paper dove folding machine, for instance, enabled the production and distribution of 88,000 doves as a gesture of gratitude to supporters. This achievement underscores the potential of DIY engineering to address practical challenges creatively and effectively.
Beyond the technical accomplishments, these projects had a profound impact on the creators’ relationship with their audience. By producing meaningful gifts at scale, they were able to express their appreciation in a tangible way, fostering a deeper connection with their supporters. This personal touch added significant value to their efforts, demonstrating how automation can enhance, rather than diminish, the human element in production.
These projects also highlight the creators’ growth, both personally and professionally. From humble beginnings to achieving international recognition, their journey illustrates the power of creativity and innovation. The cultural symbolism of doves, representing peace and gratitude, further ties these projects to their identity and mission, reinforcing the meaningfulness of their work.
Moreover, these DIY assembly lines serve as an inspiring example of how automation can be used to improve efficiency without sacrificing personalization. They demonstrate that with the right approach, it is possible to achieve large-scale production while maintaining a focus on quality and individuality. This balance is particularly important in today’s fast-paced, technology-driven world, where the human touch is often overlooked.
Exploring the Potential of DIY Automation
Building a custom DIY assembly line is more than just a cost-effective alternative to commercial systems, it is an opportunity to innovate and personalize your production process. Whether you are folding boxes or crafting intricate paper designs, the combination of precision engineering and automation can help you achieve efficiency on a large scale while retaining a meaningful connection with your audience.
By embracing challenges and exploring creative solutions, you can transform your production capabilities and leave a lasting impact. These projects demonstrate that with determination, ingenuity, and a willingness to experiment, it is possible to create systems that are not only functional but also deeply meaningful. The potential of DIY automation is vast, offering endless possibilities for those willing to explore its capabilities.
